How to Measure Floor Vents: Opening, Frame & Fit

Floor vent measurement guide: measure the duct opening, not the existing vent — Khan Supply CO

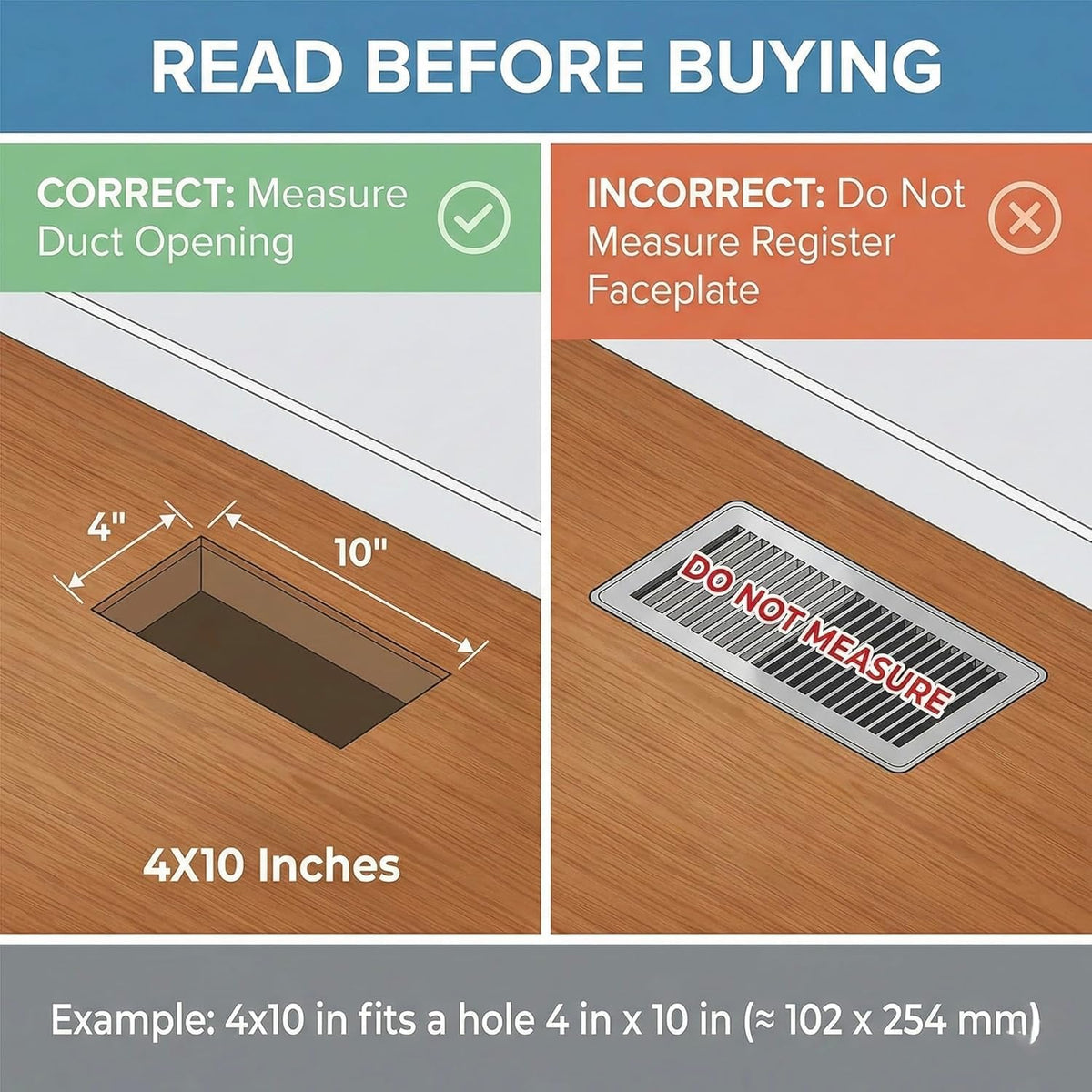

Remove the old floor vent and measure the opening underneath it. The outside dimensions of the old cover are not a reliable way to choose the nominal size of a replacement.

Before you order, check two things: whether the new body fits inside the opening, and whether its perimeter frame has enough sound flooring to rest on. Use the Drop-In Floor Vent size options for a finished floor, or compare the mounting methods below.

Measure in more than one place

  1. Lift the existing cover out carefully. Protect the finished floor and watch for sharp duct edges.
  2. Measure the clear width and length at the middle and near both ends. Record the smallest and largest readings, with units.
  3. Note any bent duct lip, screw, debris or flooring overhang that narrows the opening.
  4. Measure the clear space around the opening. Walls, cabinetry and damaged floor edges can affect how the outside frame seats.
  5. Compare your readings with the actual dimensions for the exact model and size you want.
Measurement What it tells you
Clear duct opening The space the vent body must fit into; measure after removing the cover.
Outside frame or face The visible footprint and the supported overlap required around the opening.
Centre tray or inlay The separate piece of flooring or metal panel inside the vent. It is smaller than the duct opening.

Nominal size is a label, not a cutting template

A label such as 3x10, 4x10 or 4x12 identifies a nominal duct opening. Actual body and face dimensions differ by model, and an existing opening may be irregular. Do not cut a new opening from the name alone, or automatically round an in-between measurement to the nearest label.

For example, a 3½-inch-wide opening does not establish that either a 3x10 or 4x10 vent will fit securely. Send the measurements and a photo to support@khansupply.co before buying. The 3x10-versus-4x10 guide explains that decision.

Have both measurements ready? Enter them in the vent size finder to shortlist options. You can also compare 4x10 and 4x12 floor vent dimensions, or browse the size catalogue. Check the actual product drawing before cutting or ordering.

Record the installation stage too

  • Existing finished floor: a drop-in vent fits from above and leaves a perimeter frame.
  • Existing floor without a matching offcut: the 2-in-1 Drop-In Vent includes a metal insert. Matching flooring is not included.
  • Flooring being replaced: the Undermount Flush Floor Vent can be planned into the subfloor and finished floor build-up.

Measure each opening separately before choosing quantities. Note the flooring thickness and installation type, especially for a floating floor or a planned undermount installation.

Wall and exhaust openings need additional checks

The uncovered opening is still the starting point, but wall fixing support, flange dimensions and overhead retention matter too. An exhaust-fan mount also needs a fan-compatibility check. Use the wall-vent sizing chart for those applications.

If the cover you own already binds or rocks, check the fit troubleshooting guide before modifying the opening.
