Flush vs Framed Wall Vents: Which Is Right for Your Home?

If you're weighing flush vs framed wall vents, the decision usually comes down to one question: are your walls already finished? Both styles replace the builder-grade stamped cover with a clean, modern metal grille, but they install in completely different ways — and picking the wrong one can add drywall work you didn't plan for. Here's a practical guide to choosing between the two, based on where your project stands.

The core difference between flush and framed wall vents

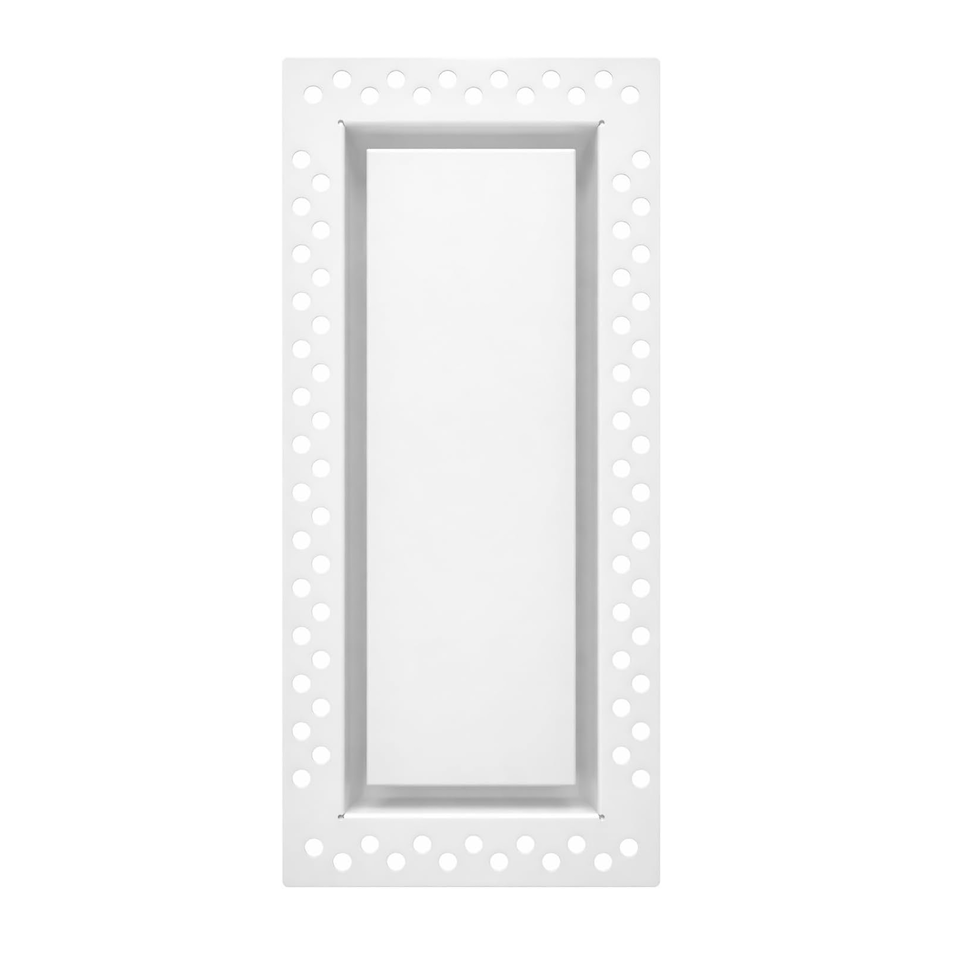

A Flush Wall Vent is designed to sit level with the surrounding drywall. It goes in while the wall is still being finished: the frame is set into the opening, blended in with joint compound, sanded, and painted along with the rest of the wall. The result is a grille that looks like it was cast into the wall itself — no raised edges, no visible trim.

A Framed Wall Vent takes the opposite approach. Its slim metal frame sits on top of the finished wall, covering the duct opening the same way a traditional register does — just with a far cleaner profile. No mudding, no sanding, no repainting. If you can drive two screws, you can install one.

When a flush wall vent is the right choice

• You're mid-renovation or building new. Flush vents need to go in before the drywall is taped and painted so the finishing coats can blend the frame into the wall. If your walls are open, this is the moment.
• You want the vent to disappear. Because the surround is painted the same colour as the wall, the only visible element is the slotted grille face — a detail that suits minimalist and modern Canadian builds especially well.
• You have a large return opening. The Flush Wall Vent runs from 3x10 up to 8x14.25 and 10x30.25, sizes that cover most residential cold-air returns.
• You need an exhaust-fan solution. A 14x14 exhaust-fan mount version handles bathroom fan openings, so your exhaust grilles can match your supply and return vents.

When a framed wall vent makes more sense

• Your walls are already painted. This is the retrofit option: it upgrades the look in minutes without opening up finished drywall.
• You want a weekend-easy swap. Remove the old register, drop the new one over the opening, done. It's the fastest way to modernize every visible vent in a room.
• The surface isn't standard drywall. Flush installation depends on joint compound; a framed vent simply covers the opening cleanly regardless of what surrounds it.

The Framed Wall Vent is available in sizes from 3x10 up to 8x14, starting at $37.99. The Flush Wall Vent starts at $36.99. Both ship free anywhere in Canada.

Get the size right before you order

Wall vent sizes refer to the duct opening, not the outer dimensions of the old cover. Pull the existing register off and measure the hole itself — width first, then height. For a full walkthrough, see our guide on how to measure your vents correctly the first time. Not sure whether the opening is a supply or a return? Here's how to tell them apart.

Why all-metal construction matters on a wall

Standard plastic registers sit at eye level on a wall, which means every warp, yellowed edge, and flexed corner is on display. Khan Supply CO wall vents are 100% metal, so they won't warp or melt the way plastic can, and they hold their lines for the long haul. Every vent is backed by a 2-year warranty from a proudly Canadian-owned company.

Frequently Asked Questions

Can I install a flush wall vent on a wall that's already painted?

You can, but it means cutting back the drywall around the opening, setting the frame, then re-mudding and repainting that section. If you'd rather not touch finished drywall, a framed wall vent delivers a similar modern look with a simple screw-on installation.

Do flush wall vents come in sizes for large return air grilles?

Yes — the Khan Supply CO Flush Wall Vent goes up to 8x14.25 and 10x30.25, which covers most residential cold-air returns. Always measure the duct opening itself before ordering.

Can these vents be used on ceilings or with exhaust fans?

The Flush Wall Vent is built for both wall and ceiling installation, and the 14x14 version is purpose-made as an exhaust-fan mount for bathroom fans.
