Hidden floor vents solve a problem almost every flooring project runs into: you spend real money on hardwood, tile or vinyl plank, and then a raised builder-grade register with visible slats interrupts the floor in the middle of the room. A hidden floor vent is built around a flooring inlay tray instead of an open grille, so the register can be filled with a cut piece of your own hardwood, tile, laminate, carpet or vinyl and blend into the finished surface while still delivering the airflow the room needs.
At Khan Supply CO, every floor vent we make is 100% metal and every style offers a customizable flooring inlay. The real decision is how each one installs, what stage your floor is at, and what you want to see when the job is done. Here is how the three styles compare.
1. Drop-In Floor Vent: the simple upgrade for existing floors
The all-metal Drop-In Floor Vent is the easiest way to replace a traditional register with a cleaner, more modern design. It installs directly into an existing duct opening from above with a click-in compression fit, so there is no subfloor work and no larger flooring renovation. The inlay tray can be filled with matching material from your floor, while the outer frame provides a clean finished edge.
It is our best seller for a reason: it delivers up to 60% more airflow than comparable flush vents, which matters on a long supply run in a Canadian winter. Black starts at $29.69 and white at $31.49, in 3x10, 4x10 and 4x12.
Best for:
- Existing finished floors
- Quick upgrades from traditional registers
- Homeowners who have matching flooring available
- Projects where simple installation matters
A drop-in floor vent gives you the look of a customized hidden vent without changing the structure of your finished floor. Not sure which colour suits the room? Our guide to black vs white floor vents walks through the pairings that work.

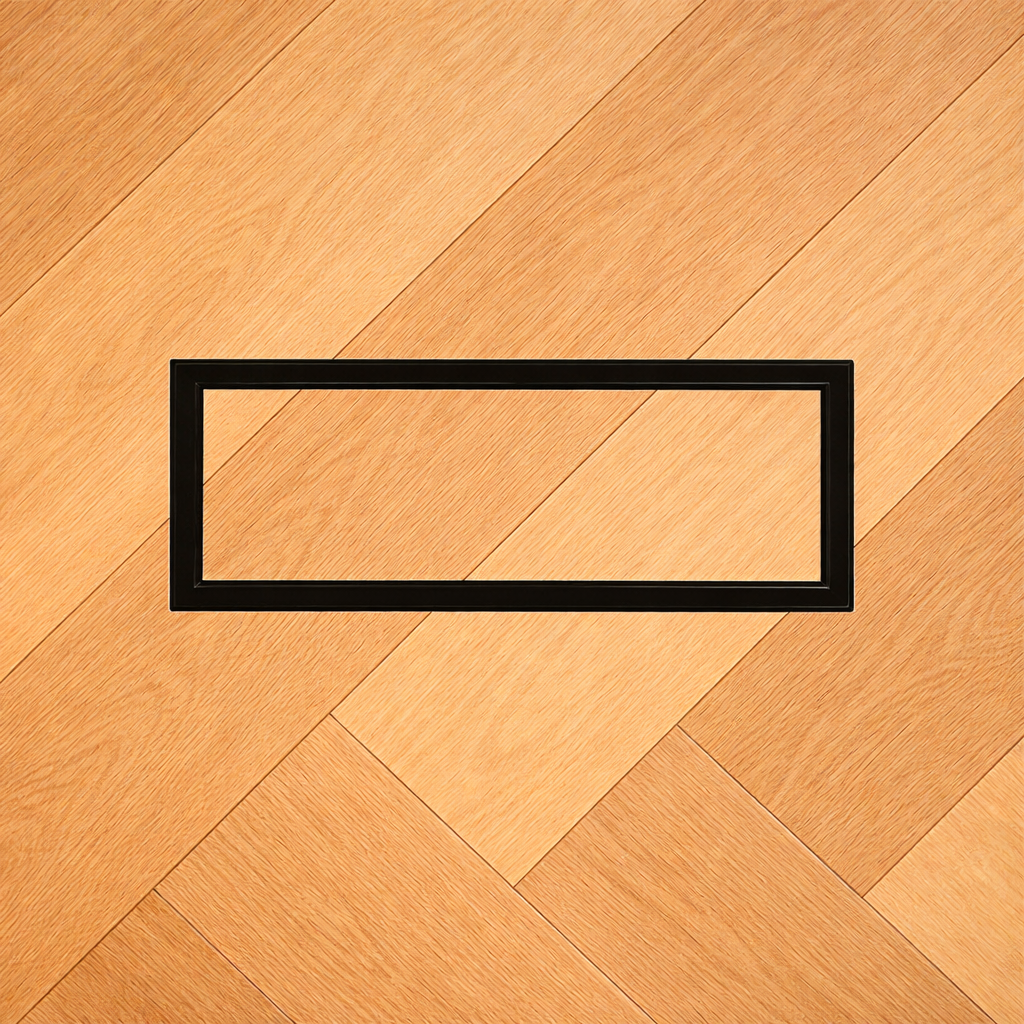

2. Undermount Flush Floor Vent: the most seamless finish
The Undermount Flush Floor Vent is designed for projects where the vent can be planned into the flooring installation from the beginning. Unlike a drop-in model, the outer body is installed into the subfloor before the finished flooring goes down. The inlay tray is then filled with the same surrounding material, so the vent sits completely flush and becomes part of the floor rather than sitting above it.
Undermount starts at $54.99 in 3x10 and 4x10, with 4x12 at $59.99 and larger openings up to 6x14 available for wide supply runs. Because it goes in at the subfloor stage, timing is everything: our undermount subfloor install guide covers the sequence, and our guide to floor vent install timing, before or after flooring explains what to do if you have already missed the window.
Best for:
- New builds
- Full flooring renovations
- Tile, hardwood, laminate or vinyl installation projects
- Homeowners and builders looking for the cleanest integrated finish
An undermount flush vent requires more planning during installation, but it delivers the most architectural, flooring-matched result.
Shop the Undermount Collection
3. Drop-In Vent with Insert: a clean look without extra flooring right away
The Upgraded 2-in-1 Drop-In Vent with Insert is for homeowners who want a clean, modern vent immediately but do not have matching flooring material on hand. Like the standard drop-in, it installs directly into an existing duct opening without any undermount work. The difference is that it includes a finished insert, so the vent looks complete from day one.
If matching flooring becomes available later, the inlay can still be customized to blend into the surrounding floor. It starts at $37.99 in 3x10 and 4x10, with 4x12 at $39.99. For a closer look at the two ways to finish the tray, see floor vent inserts: metal panel or flooring inlay.
Best for:
- Existing finished floors
- Homeowners who do not have extra flooring material available
- Quick upgrades with a finished look immediately
- Projects where future flooring customization is still desired
This option provides the convenience of a ready-to-install modern vent, with the flexibility to create a more flooring-matched appearance later.
Shop the Drop-In + Insert Collection
Which hidden floor vent is right for your project?
All three options are designed around a customizable flooring inlay. The right choice depends on your installation stage and whether you already have flooring material available.
| Your Situation | Recommended Option |
|---|---|
| Your floor is complete and you have matching flooring available | Drop-In Floor Vent |
| You are installing new flooring and want the most seamless finish | Undermount Flush Floor Vent |
| Your floor is complete but you do not have extra flooring right now | Drop-In Vent With Insert |
Whichever style you land on, measure the duct opening rather than the old cover before ordering. Our guide on how to measure floor vents for the right size fit takes two minutes and prevents most returns. 3x10 and 4x10 are the openings we see most in Canadian homes, and every style above is stocked in both. You can browse all three side by side in the flush floor vents collection.
A modern register designed around your floor
Floor vents are necessary, but traditional registers do not need to define the look of a room. A modern flooring-inlay vent lets the floor remain the focus. Whether you are replacing an existing register, planning a full renovation or looking for a finished option without spare flooring on hand, Khan Supply CO offers a clean, 100% metal vent that will not warp or melt the way plastic registers can, with free shipping across Canada and a 2-year warranty.
Frequently Asked Questions
Do hidden floor vents restrict airflow?
It is the most common question we get about inlay-style vents, so we measured it. Our real-world flush floor vent airflow test shows the numbers, and the Drop-In Floor Vent delivers up to 60% more airflow than comparable flush vents if a long duct run is a concern.
Can I install a hidden floor vent in an existing floor?
Yes. Both the Drop-In Floor Vent and the 2-in-1 Drop-In Vent with Insert fit into an existing duct opening from above with no subfloor work. Only the Undermount style needs to go in before the flooring is laid.
What flooring can I put in the inlay tray?
Hardwood, engineered wood, laminate, vinyl plank, tile and carpet all work. Cut a piece from your leftover flooring to fit the tray, set it in place, and the vent reads as part of the floor.
